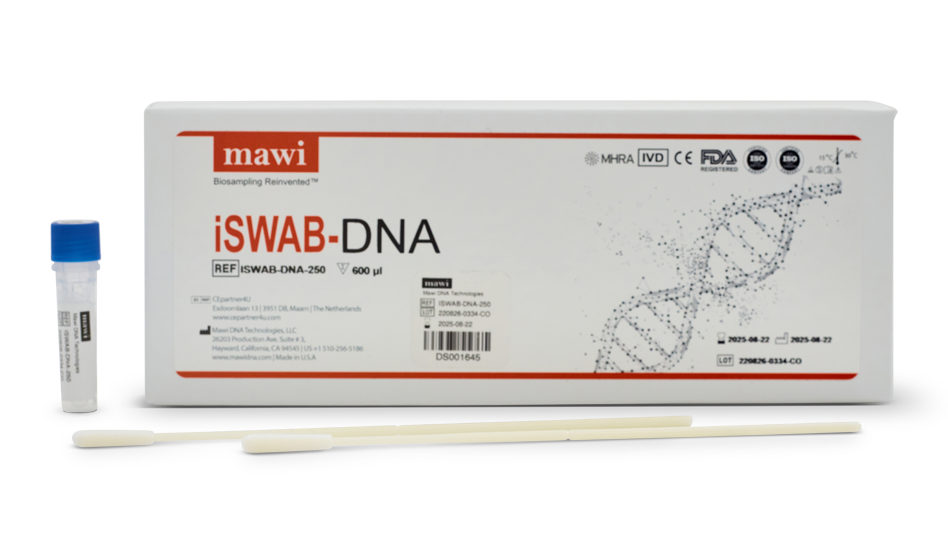

iSWAB™-DNA-250 Collection Kit
SEE PRODUCT

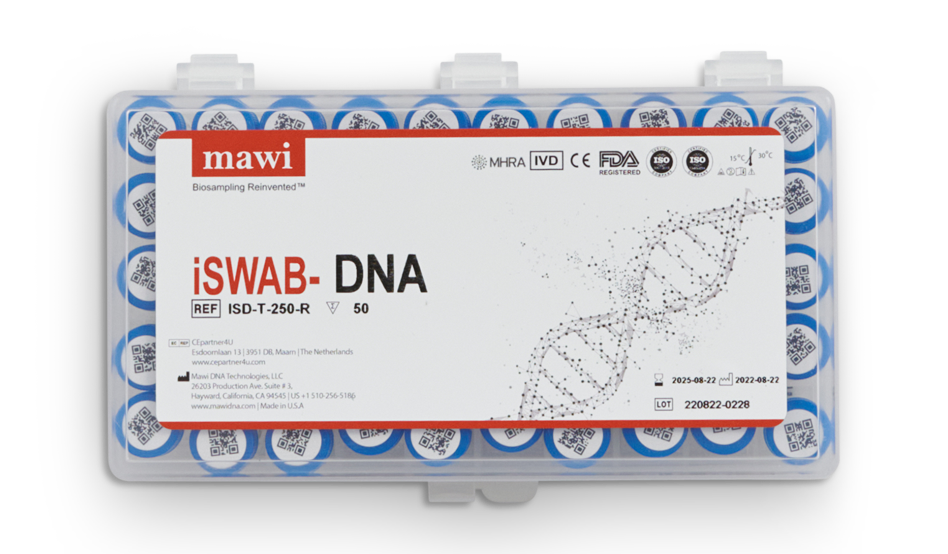

iSWAB™-DNA-250 Collection Device Rack
SEE PRODUCT

Benefits

benefits Icon

Many non-invasive collection methods often utilize alcohol, which can cause the sample to produce short DNA fragments, limiting its ability to be used in basic genotyping applications. Other sample collection methods utilize a dry transport which does not stabilize the sample at the point of collection, causing bacteria to overgrow and jeopardize the yield of DNA. iSWAB™-DNA-250 is an alcohol-free, gentle lysis technology allowing for the recovery of double-stranded, large fragment DNA similar to the genomic DNA generated from blood, making it suitable for complex genomics downstream arrays such as microarrays and Next Generation Sequencing.

Product detail

Features

  • Simple, fast and convenient sample collection: Self-collection or assisted collection with high simplicity and ease in less than 5 minutes
  • High nucleic acid recovery: Up to 15µg (ISWAB™-DNA-250) of double-stranded, long fragment DNA for downstream applications including microarray and NGS
  • Low bacterial genomic DNA contamination: Achieve less than 3% bacterial genomic DNA contamination
  • Swab-free sample transport: Decrease sample processing time without compromising sample integrity
  • Suitable for all population segments including infants, toddlers, and elderly
  • Efficient traceability and storage purposes: LIMS compatible unique barcodes included on each iSWAB™ device
  • Room temperature stable: reducing sample storage and transport costs by eliminating cold chain
  • Scalable and easy to process: Manual and automation-friendly sample processing.

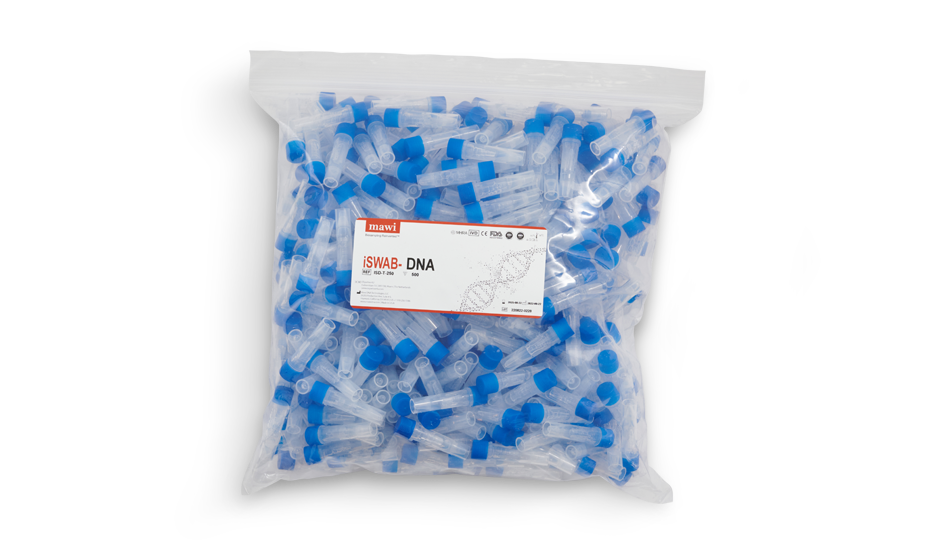

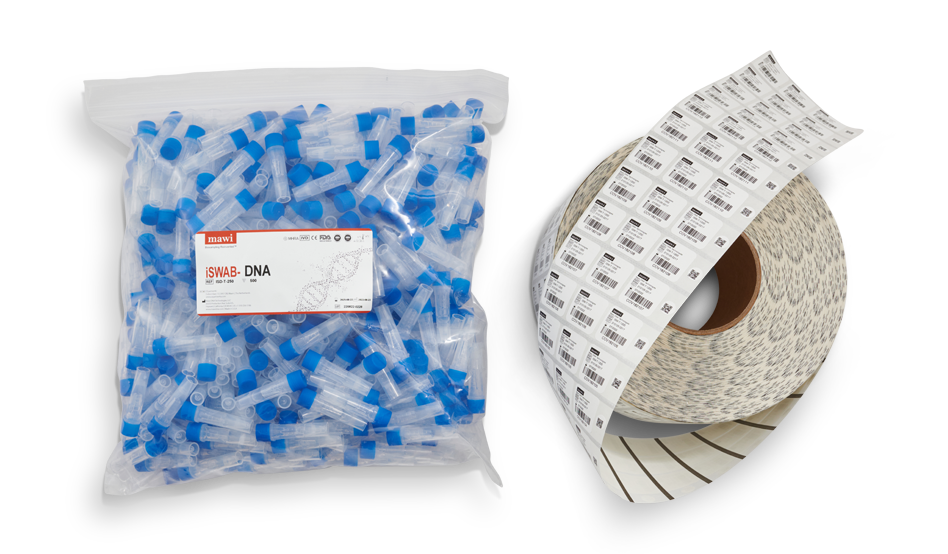

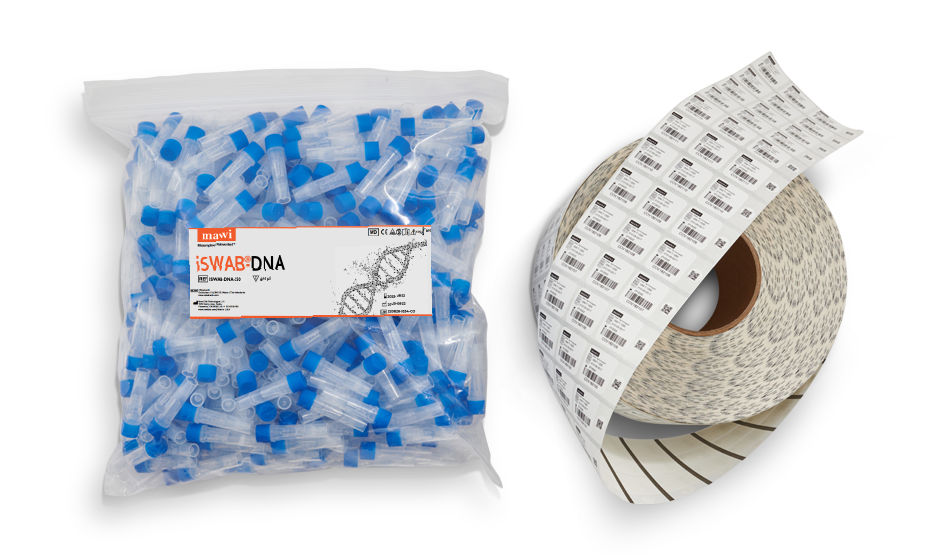

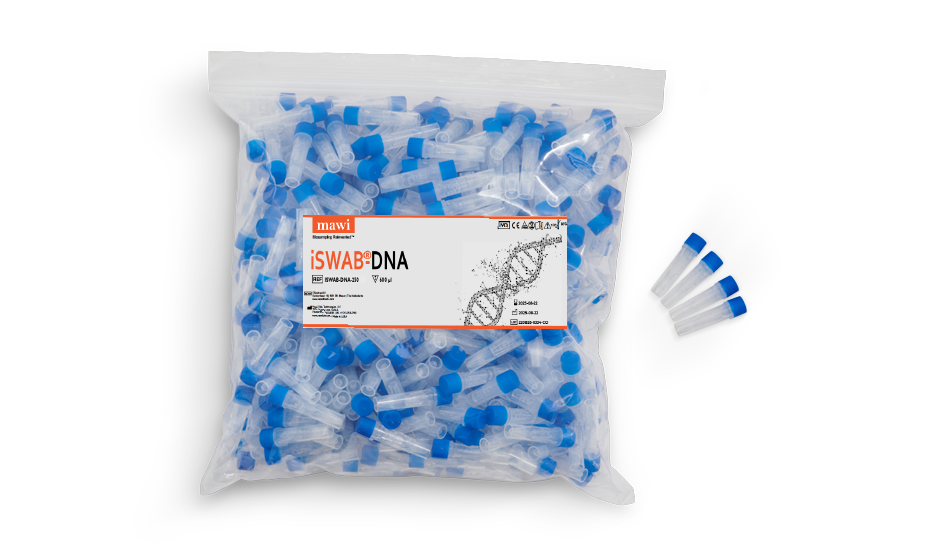

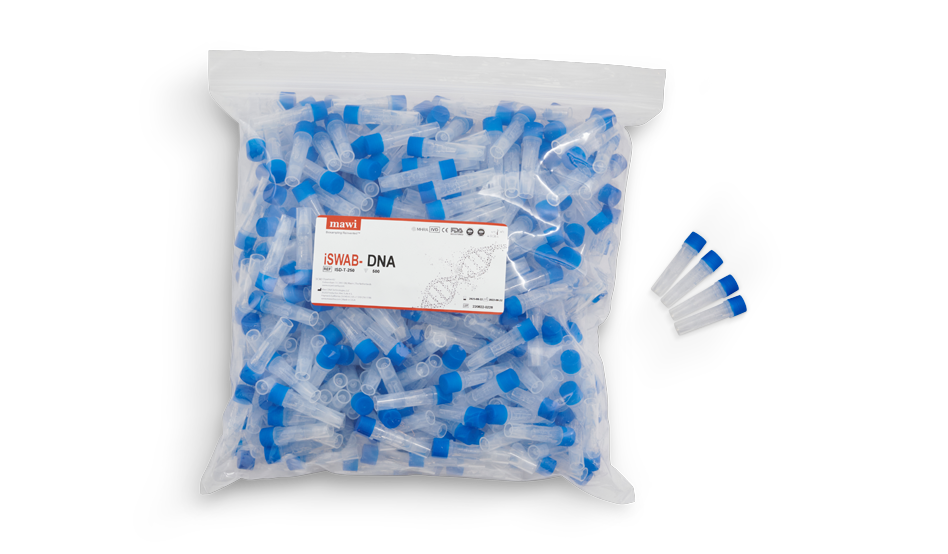

iSWAB™-DNA-250 Collection Device Bag

Applications

Product Common Name: iSWAB™-DNA-250 Bag

Product Full Name: iSWAB™-DNA Collection Device Bag

Part Number: ISD-T-250

Units: 600uL x 500 units

Includes:
500 iSWAB™-DNA-250 Devices
Clear Bag
Labels

*The products shown contain the CE Mark and are approved for IVD use in countries recognizing this standard. In the USA, products are designated For Research Use Only and not for use in diagnostic procedures and will be labeled accordingly.

Devices are only for collecting human DNA samples via spit or buccal cells.

Population Genomics, Cancer research HLA typing, DNA sequencing; Sanger and Next generation sequencing, Epidemiology

Product Description

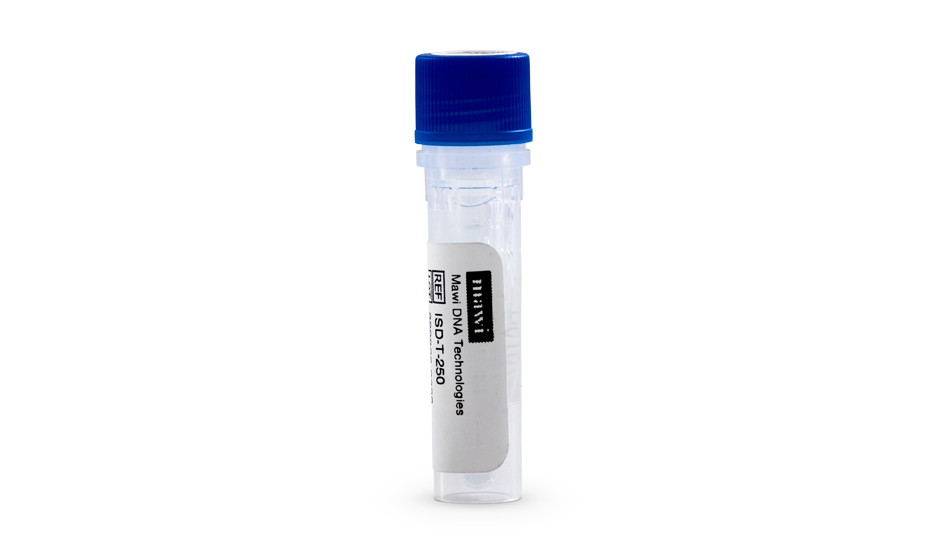

Each iSWAB™-DNA-250 collection device consists of a collection tube that is pre-filled with 600 µL of the nontoxic iSWAB™-DNA buffer and fitted with a proprietary insert. The insert is designed to optimize the release of specimens collected with swabs into the gentle lytic buffer, creating a minimal footprint and allowing for the swab-free transport of specimens. Self-collection or assisted collection can be achieved in less than 5 minutes and is suitable for all population segments including infants, toddlers, and elderlies. iSWAB™-DNA-250 is pre-barcoded for traceability and storage and is easy to process via manual and automated applications. The device is human gDNA and PCR inhibitor free and collected samples are stable at room temperature (15-30 °C) for 60 days.

Intended Use

The iSWAB™-DNA collection device is a DNA sample collection device for the collection, stabilization, concentration, transport, and storage of DNA samples. It is a non-invasive swab-based sampling applicator and is intended to be used for sample collection of buccal cells. The DNA collection kit for humans can capture samples producing high yields of double-stranded, long fragmented DNA between 5-15μg (iSWAB™-DNA-250) with <3% bacterial contamination using traditional sampling swabs.

Indication for Use (from IFU)

The iSWAB™-DNA collection device is intended for the collection of double-stranded, large-fragment DNA at the point of collection without the need for swab inclusion. The gentle collection and lysis chemistry of the nontoxic iSWAB™-DNA buffer allows for the recovery of DNA comparable to the genomic DNA generated from blood, making it suitable for complex genomics downstream assays such as microarrays, NGS, and Sanger sequencing. The device can be used for ambient temperature (15-30 °C) transport and storage. Ideal for: paternity testing, genealogy, ancestry, population genomics, cancer research, HLA typing, and epidemiology.

Storage and Stability

“Pre-collection: 3 years from date of manufacture between 15-30° C.
Transport temperature, post-collection: 15-30° C.
Sample stability and storage, post-collection: 60 days real time and 3 years accelerated time; if longer storage time is required, collected samples can be stored at -20 to -80° C.”

Resources

Product
iSWAB™-DNA-250
Pre-Collection
Time Temp (C)
3 years 15-30
Transport
Temp (C)
15-30
Analyte
Type
Genomic DNA
Post-Collection
Time Temp (C)
60 days Real Time (3 yrs AT) 15-30
Cryo Storage
Temp (C)
-20- to -80
Attributes iSWAB™-DNA-250
Sample Buccal
Use Mammalian DNA
# Swabs 2
Collection Volume 600 µl
Nucleic Acid Yield (μg) 5-15
Molecular Weight of DNA >23 kb
Bacterial DNA content <3%
Storage and Transport temperature RT
Shelf Life Stability 3 years
Post-collection Stability Months
Capability to concentrate sample Yes
Suitable for all population segments Yes
Automation friendly Yes
Liquid Sample Yes
Barcoded Included
Applications Population Genomics, Cancer research HLA typing, DNA sequencing; Sanger and Next generation sequencing, Epidemiology
Compatible Assays Investigator Quantiplex Kit (Qiagen, Cat. # 387016), Promega PowerpPlex 16 HS System (Promega, Cat. # DC2101), EZ1 Advanced XL DNA Investigator Flip-Cap Card (Qiagen, Cat. # 9019933), TaqMan Open Array Genotyping assays

WARNING AND PRECAUTIONS

For external use and single use only. DO NOT drink, touch, or remove the buffer from the device. Do Not use if device is broken, leaking, or visibly damaged. These products should only be used in accordance with the instructions provided. Avoid eye contact with the liquid in the device. IF IN EYES: Rinse cautiously with water for several minutes. IF INGESTED: Call POISON CENTER. Rinse mouth. Not a Hazardous Combustion Product. Device cap can be a choking hazard. Do not ingest. Refer to SDS.
